Brand: Sollektor
Type: Hollow-Core Anti-Resonant Fiber
Contact: Jeff Wang 13162059831(Europe、Britain)
Jacky Wang 19945727170(America、Canada)
Penuel Yan 13023169048(Asia、Russia)
E-mail: info@sollektor.com
Quartz fiber has been widely used in various scenarios for laser transmission, but in many fields, the laser transmission based on quartz fiber has reached the limit due to the nonlinear effects caused by the material, light-guiding windows, and damage mechanisms of the fiber material.

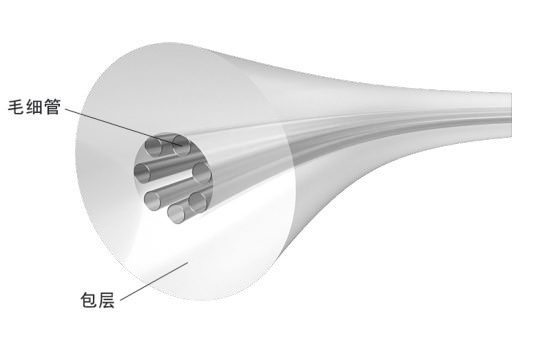

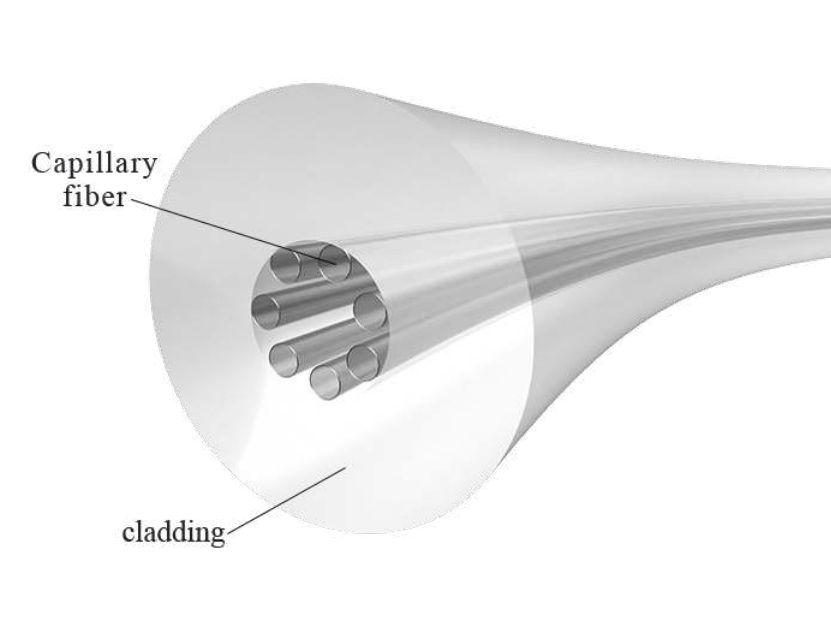

The Anti-Resonant Hollow Core Fiber (ARF) is a type of hollow core fiber, where light can be guided along the fiber axis in the low refractive index hollow core fiber. The hollow fiber has extremely low nonlinearity and a higher damage threshold. The inner transmission beam has small overlap with the surrounding glass, which provides a unique solution for high-power lasers based on fiber and creates breakthrough applications in fields such as laser manufacturing, laser ignition, defense, ultra-fast lasers, non-linear endoscopes/microscopes, and gas-based mid-infrared lasers.
Medical Industry
Power Industry
Optical Communication Industry
Aerospace, Chemical, and Nuclear Industries
High-Temperature, High-Pressure, and Low-Temperature Environments
Compatible with Ethylene Oxide (ETO) Sterilization and Radiation Sterilization (Pure Silica Core)
Mining Industry, Oil and Gas Industry
Electromagnetic Radiation Environment, Underwater Use, Water-resistant
Medical Interventional Therapy with Biocompatibility
Fiber | MOF_HC_ARF6C _30/240/350AE | MOF_HC_ARF6C _35/250/370AE | MOF_HC_ARF7C _100/250/320AE | MOF_HC_ARF8C _55/275/400AE | MOF_HC_ARF8C _75/325/490AE |
Numerical aperture | 0.01-0.03 | ||||
Light guide interval | 450nm-630nm 790nm-1750nm | 450nm-720nm 910nm-1750nm | 2300nm-4500nm | 800nm-1200nm | 900nm-1300nm |
Spectral loss | @900-1300 nm<100 dB/km | @1310 nm<25 dB/km | @4000 nm<3.5dB/km | @1030 nm<60 dB/km | @1030 nm<50 dB/km |
Core diameter | 30±3μm | 35±3μm | 100±3μm | 58±3μm | 75±3μm |
Cladding diameter | 240±5μm | 250±5μm | 250±5μm | 275±5μm | 325±5μm |
Jacket diameter | 350±5μm | 370±5μm | 320±5μm | 400±5μm | 490±5μm |
Jacket Material | Acrylate | ||||
Main applications | Visible light and near-infrared transmission | Visible light and near-infrared transmission | mid-infrared transmission | high-power transmission | high-power transmission |
