Brand: Sollektor
Type: Gold Coated Fiber
Contact: +0086+15618183621
E-mail: jasmin_xu@sollektor.com
info@sollektor.com

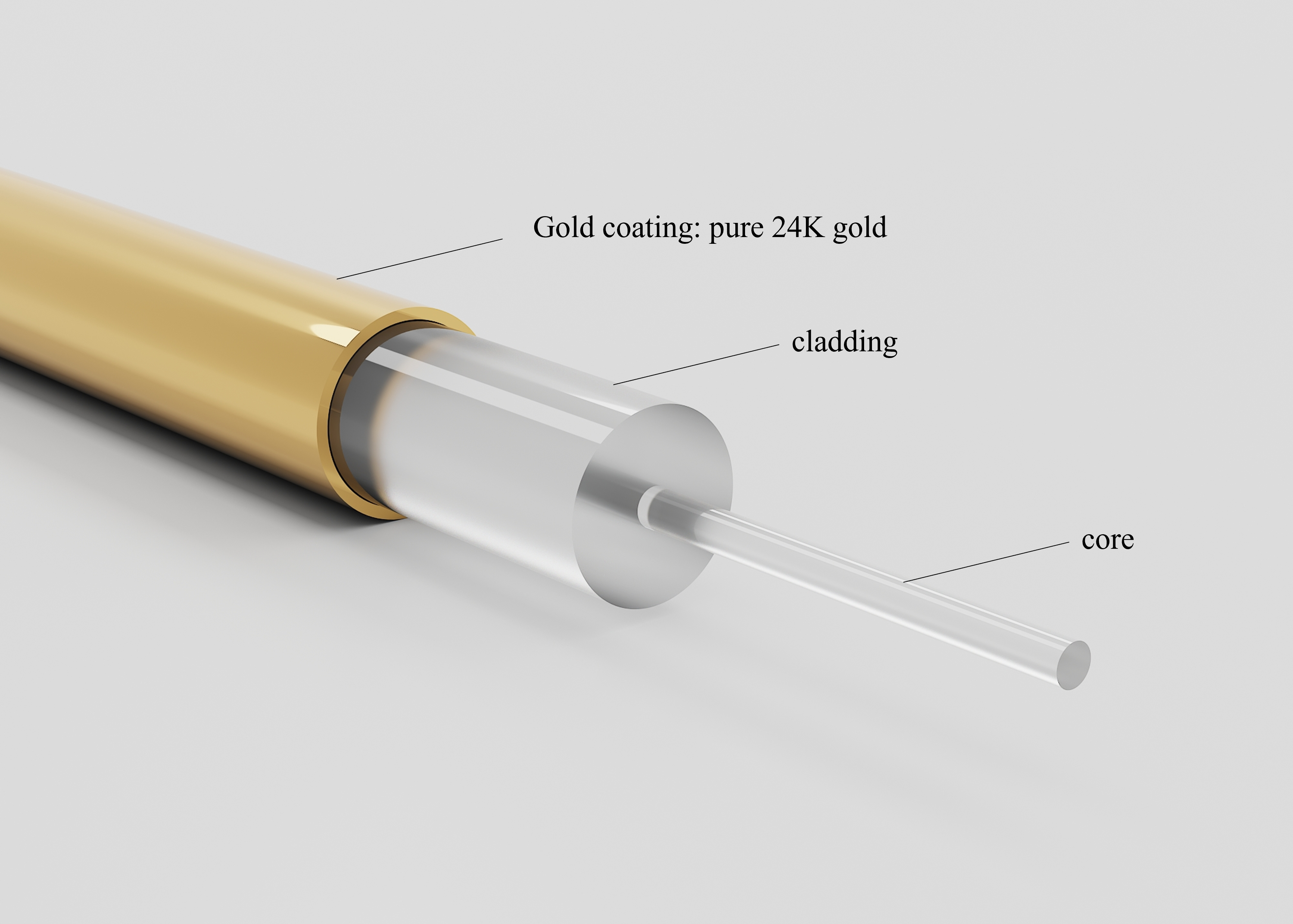

Sollektor's Gold Coated Fibers are designed to achieve the widest temperature range (-269°C to +700°C) of any optical
fiber on the market. This, combined with excellent corrosion resistance, and the fiber's ability to be soldered or brazed, makes it the ideal fiber for many applications
Application for gold fibers include high temperature, cryogenic, corrosive and caustic environments, ultra-high vacuum, rocket, turbine and jet engine monitoring
Typical Applications:
• High temperature sensing
• Well monitoring sensing
• Corrosive environments
• High radiation environment
• Turbine and jet engine monitoring
• High vacuum equipment
• Sensing and measurement of aircraft, missiles, and aerospace equipment
Specifications:
Characteristics | G652D | G657 |
Fiber Material | Ge Doped Silica | |
Mode Field Diameter @1310nm | 9.2 μm ± 0.4μm | |
Mode Field Diameter @1550nm | 10.4 μm ± 0.5μm | |
Core/Clad Concentricity Error | ≤ 0.5 μm | |
Cladding Diameter | 125 μm +1/-3 | |
Clad Offset | ≤ 0.07 μm | |
Coating Diameter | 155 μm ± 10% | |
Coating Offset | ≤ 6% | |
Numerical aperture (NA) | 0.12 ± 0.02 | |
Attenuation @1310nm | ≤ 4 dB/Km | |
Typicial Attenuation @ 1310nm* | ≤ 3 dB/Km | ≤ 2 dB/Km |
Attenuation @ 1550nm | ≤ 4 dB/Km | ≤ 2 dB/Km |
Typicial Attenuation @ 1550nm* | ≤ 3 dB/Km | ≤ 2 dB/Km |
Proof Test Level | ≥ 100Kpsi | |
Median Tensile Strength | ≥ 3.3GPa | |
Operating Temperature Range | -269°C to 700°C | |
Bend Radius Short Term | 200×Fiber Radius (mm) | |
Bend Radius Long Term | 400×Fiber Radius (mm) | |
