Hard Plastic Clad Large Mode Field Area Fiber

Brand:       Sollektor
Type:         Hard Plastic Clad Large Mode Field Area Fiber

Contact:   +0086+15618183621

E-mail:     jasmin_xu@sollektor.com

                info@sollektor.com

Hotline:+86-4006-888-937
Contact Us
Overview

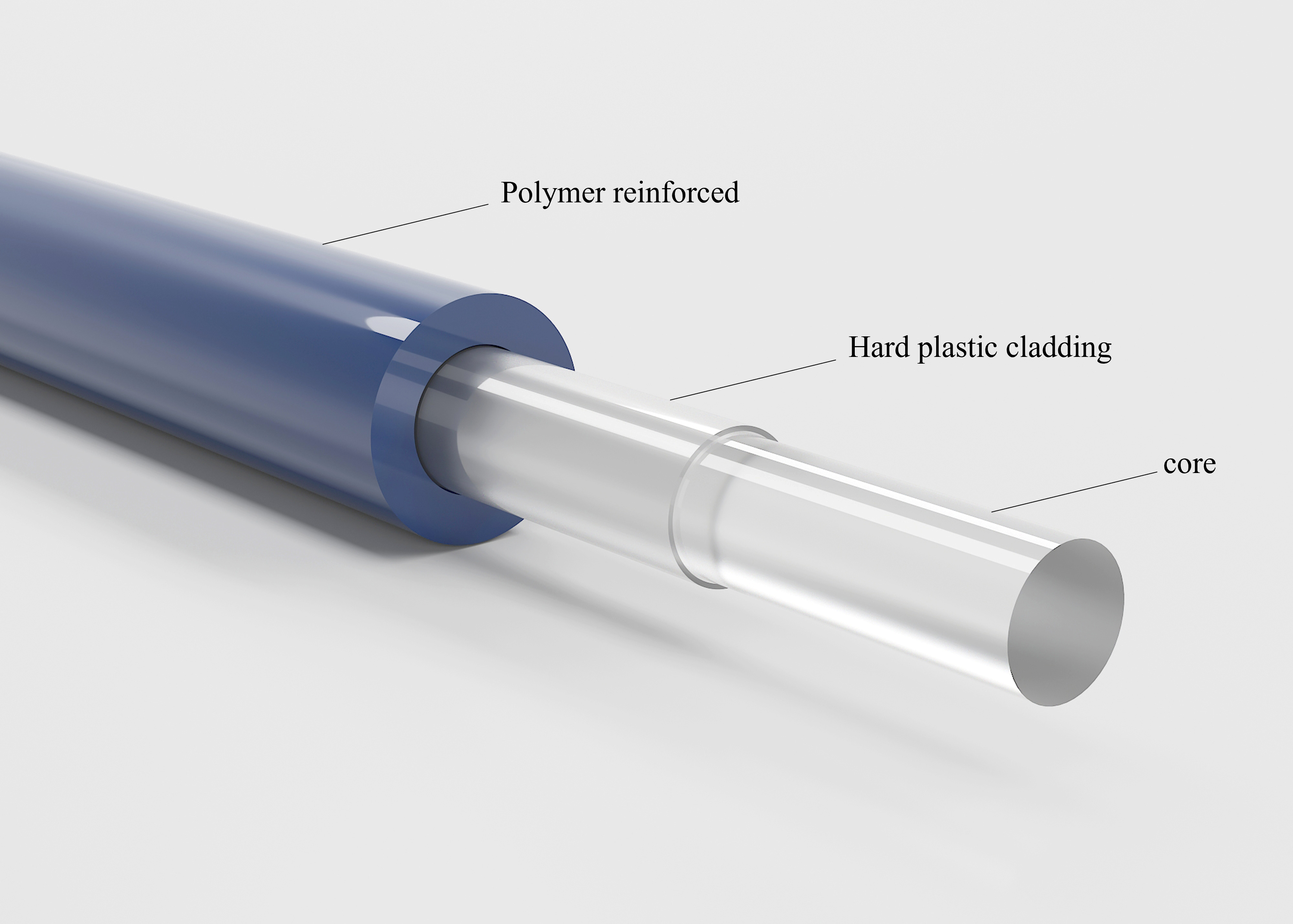

The Hard Plastic Clad fibres with a hard polymer sheath are characterised by high numerical apertures for a wide range of applications from long-range lighting to photodynamic therapy. This high-quality fiber features easy termination without bulb effect and is a cost-effective alternative to quartz/quartz fibers.

Specifications
Product codePSHC400/440/750EPSHC600/640/1000EPSHC800/850/1040EPSHC1000/1060/1400E
Core diameter400 ± 5 μm600 ± 5 μm800 ± 8 μm1000 ± 12 μm
Cladding diameter440 ± 10 μm640 ± 10 μm850 ± 10 μm1060 ± 15 μm
Reinforcement diameter750 ± 30 μm1000 ± 30 μm1040 ± 30 μm1400 ± 50 μm
Numerical aperture (NA)0.37 ± 0.02  or  0.48 ± 0.02
Fiber core materialHigh purity fused quartz glass (High -OH or Low -OH)
Cladding materialFluorinated acrylic resin
Enhancement layerETFE (other materials can be customized)
Attenuation coefficient@850 nm-10dB/km
Minimum bending radius(220 ~ 250) × fiber diameter
