Brand: Sollektor
Type: Acrylate Single Mode Fiber
Contact: +0086+15618183621
E-mail: jasmin_xu@sollektor.com
info@sollektor.com

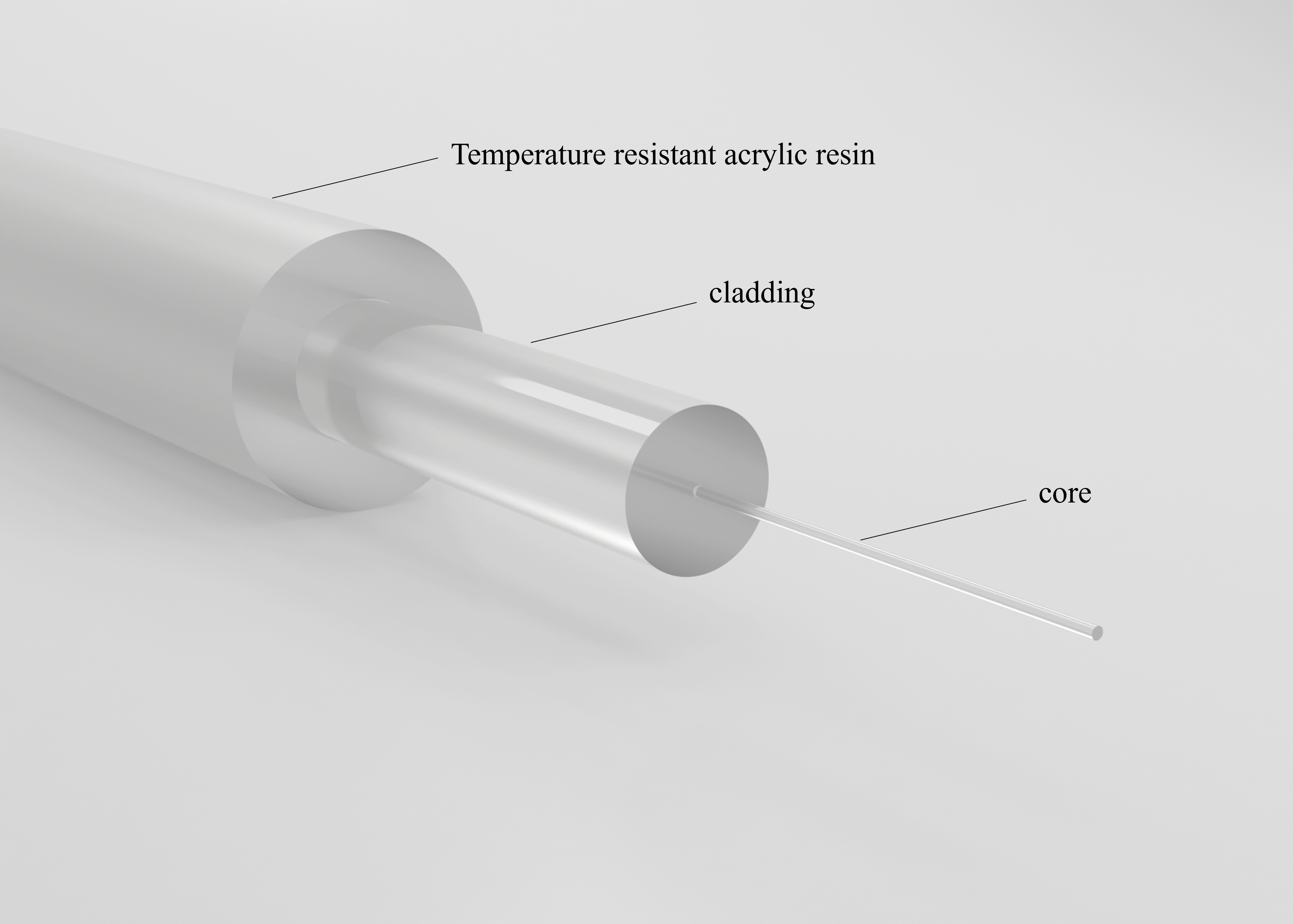

Acrylic resin with temperature resistance is compatible with traditional communication fiber coating processes, enabling high-speed UV curing and large-scale production. It has excellent moisture resistance, anti-fungal properties, and temperature resistance (150-180°C). Therefore, acrylic resin coatings are commonly used in adverse conditions such as medical sterilization, gas isolation, UV exposure, humidity, and high temperatures.
Medical Industry
Power Industry
Optical Communication Industry
Aerospace, Chemical, and Nuclear Industries
High-Temperature, High-Pressure, and Low-Temperature Environments
Compatible with Ethylene Oxide (ETO) Sterilization and Radiation Sterilization (Pure Silica Core)
Mining Industry, Oil and Gas Industry
Electromagnetic Radiation Environment, Underwater Use, Water-resistant
Medical Interventional Therapy with Biocompatibility
Product code | SM9/125/245HTAE | PSC_SM9/125/245HTAE |
Numerical Aperture | 0.12-0.14 | |
Mode Field Diameter | @1310 nm 9.2±0.4 μm @1550 nm 10±0.8 μm | @1550 nm 9.3±0.8 μm |
Spectral loss（dB/km） | @1310 nm<0.4 dB/km @1550 nm<0.4 dB/km | @1310 nm<0.6 dB/km @1550 nm<0.6 dB/km |
Core Material | Germanium-doped silica | High-purity silica |
Cladding diameter | 125±1μm | |
Length | ≤30km | |
Jacket diameter | 245±8μm | |
Concentricity of core cladding | ≤0.6μm | |
Cladding non-circularity | ≤0.1% | |
Jacket Material | Acrylate | |
long-term working temperature | -40~150℃ | |
Short-term temperature tolerance | 180℃ | |
Prooftest | 100kpsi | |
