Polyimide Mutimode Fiber-GI

Brand:      Sollektor
Type:        Polyimide Mutimode Fiber-GI

Contact:   +0086+15618183621

E-mail:     jasmin_xu@sollektor.com

                info@sollektor.com

Hotline:+86-4006-888-937
Advisory
Overview

Polyimide coated fiber can be used is a lot of application, such as in Dental for Gum treatment and root canal therapy, high and lowe temperture fiber sensing ,Fluorescent temperature measuring sensing, deliver the spectrum, Transmission of EXCIMER 308nm wavelength laser for ELCA application

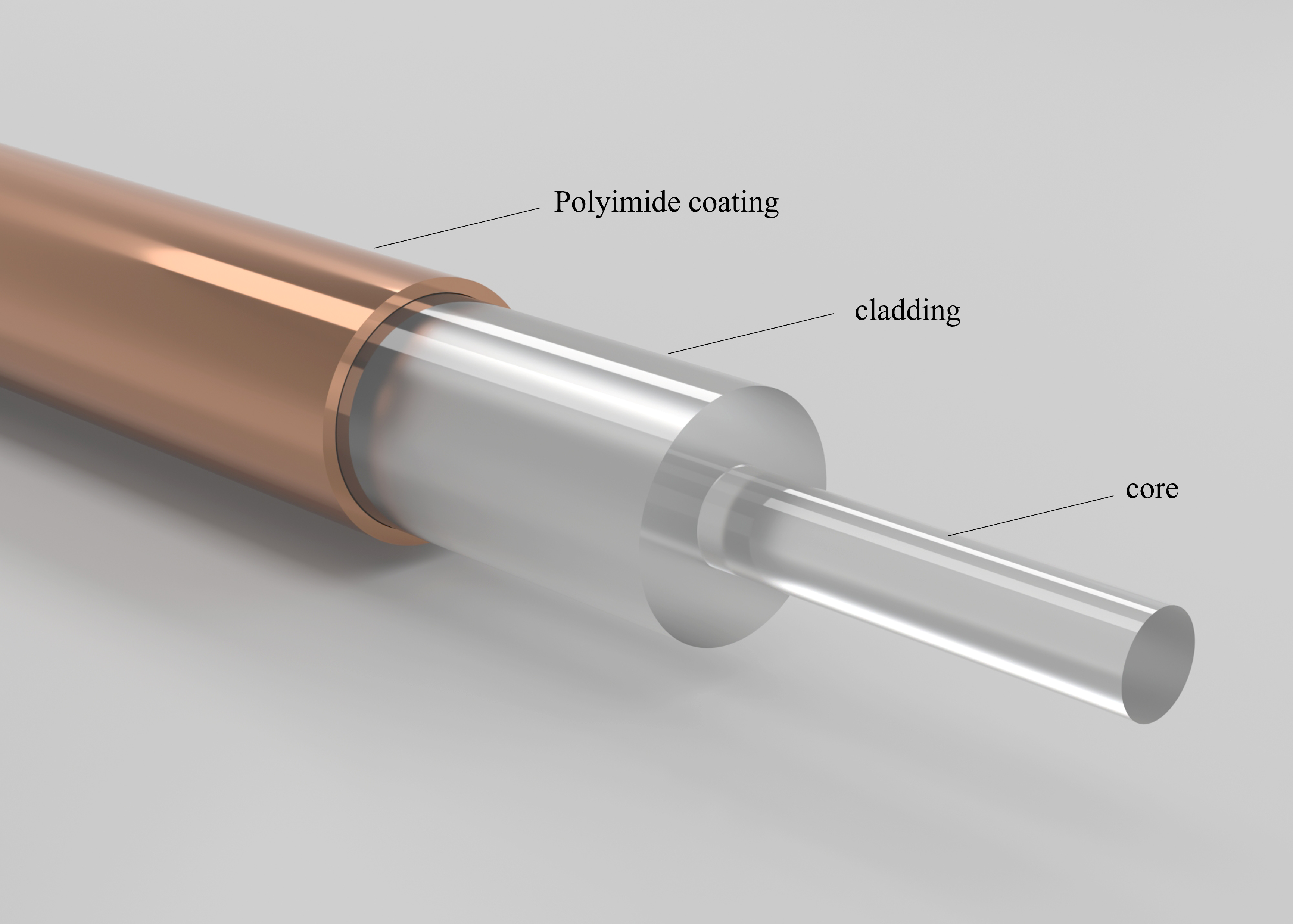

Polyimide (PI) is a polymer material with excellent high and low-temperature resistance, good mechanical strength, and ductility, as well as outstanding comprehensive performance. It can significantly improve the temperature resistance of optical fiber coatings, prolong the service life of fibers in high-temperature environments, and maintain good mechanical properties without becoming brittle in low-temperature environments. Moreover, Polyimide is non-toxic, stable, and biocompatible, making it suitable for manufacturing tableware and some medical consumables alternatives. Additionally, Polyimide can resist almost all organic solvents, some inorganic acids, and hydrolysis.


Applications

Medical Industry
Power Industry
Optical Communication Industry
Aerospace, Chemical, and Nuclear Industries
High-Temperature, High-Pressure, and Low-Temperature Environments
Compatible with Ethylene Oxide (ETO) Sterilization and Radiation Sterilization (Pure Silica Core)
Mining Industry, Oil and Gas Industry
Electromagnetic Radiation Environment, Underwater Use, Water-resistant
Medical Interventional Therapy with Biocompatibility


Specification

Product code

GI_MM50/125/160PI

GI_MM62.5/125/160PI

PSC_GI_MM50/125/160PI

Numerical Aperture(NA)

0.18-0.22

Spectral loss(dB/km)

@850 nm<3 dB/km

@1300 nm<1 dB/km

@850 nm<4 dB/km

@1300 nm<2 dB/km

@850 nm<3 dB/km

@1300 nm<1 dB/km

Core Material

Germanium-doped silica

Germanium-doped silica

Fluorine-doped gradient refractive   index silica

Core diameter

50±2μm

62.5±2μm

50±2μm

Cladding diameter

125±1μm

Length

≤30km

Jacket diameter

160±5μm

Concentricity of core cladding

≤6μm

Cladding non-circularity

≤0.2%

Jacket Materia

Polyimide

Long-term working temperature

①-60~350℃;②-195~380℃(HTPI)

Short-term temperature tolerance

400℃

Screening strentgh

100kpsi
