High Temperature Acrylic Resin Fiber Mutimode Fiber

Brand:      Sollektor
Type:        Acrylate Mutimode Fiber

Contact:   +0086+15618183621

E-mail:     jasmin_xu@sollektor.com

                info@sollektor.com

Hotline:+86-4006-888-937
Advisory
Overview

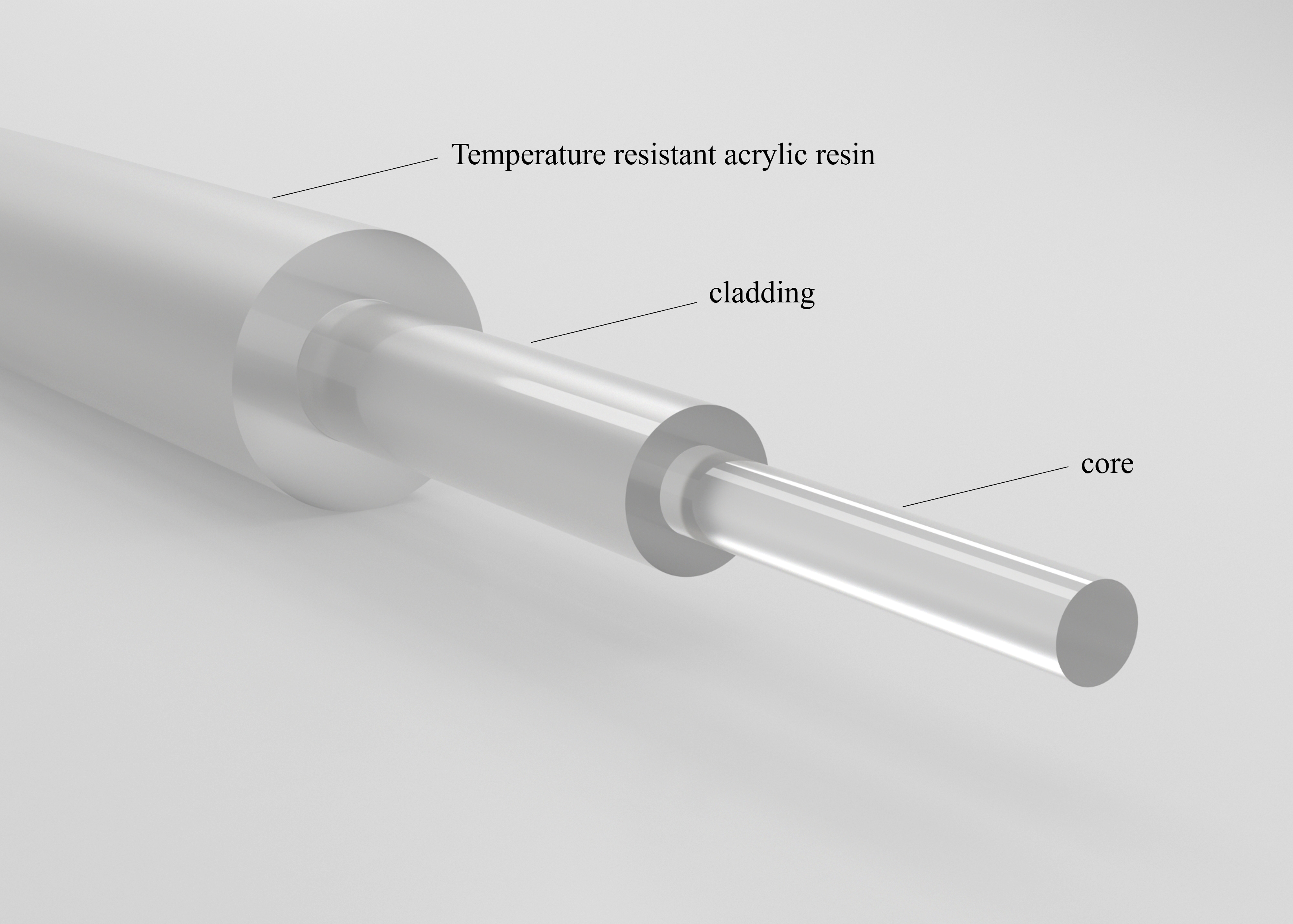

Acrylic resin with temperature resistance is compatible with traditional communication fiber coating processes, enabling high-speed UV curing and large-scale production. It has excellent moisture resistance, anti-fungal properties, and temperature resistance (150-180°C). Therefore, acrylic resin coatings are commonly used in adverse conditions such as medical sterilization, gas isolation, UV exposure, humidity, and high temperatures.



Applications

Medical Industry
Power Industry
Optical Communication Industry
Aerospace, Chemical, and Nuclear Industries
High-Temperature, High-Pressure, and Low-Temperature Environments
Compatible with Ethylene Oxide (ETO) Sterilization and Radiation Sterilization (Pure Silica Core)
Mining Industry, Oil and Gas Industry
Electromagnetic Radiation Environment, Underwater Use, Water-resistant
Medical Interventional Therapy with Biocompatibility

Specification

Product code

GI_MM50/125/245HTAE

GI_MM62.5/125/245HTAE

PSC_GI_MM50/125/245HTAE

Numerical   Aperture

0.18-0.22

Spectral   loss(dB/km)

@850nm<3 dB/km

@1300nm<1 dB/km

@850nm<4 dB/km

@1300nm<2 dB/km

@850nm<3 dB/km

@1300nm<1 dB/km

Core   Material

Germanium-doped   silica

Germanium-doped   silica

Fluorine-doped   gradient refractive index silica

Core diameter

50±2μm

62.5±2μm

50±2μm

Cladding   diameter

125±1μm

Length

≤30km

Jacket   diameter

245±8μm

Concentricity   of core cladding

≤6μm

Cladding   non-circularity

≤0.2%

Jacket   Material

Temperature resistant acrylic resin

Long-term   working temperature

-40~150℃

Short-term   temperature tolerance

180℃

Prooftest

100kpsi
